UL 1332

規格書下載Download

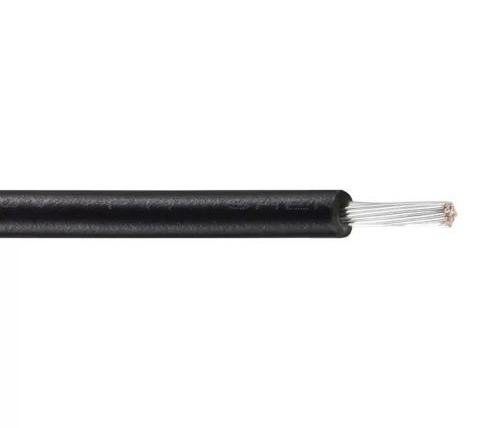

H31XXTS10X｜UL 1332 16,18,20,22,24,26,28 AWG x 1C Tinned Stranded Copper, 200°C 300V. This specification reference UL(UL758) standard.

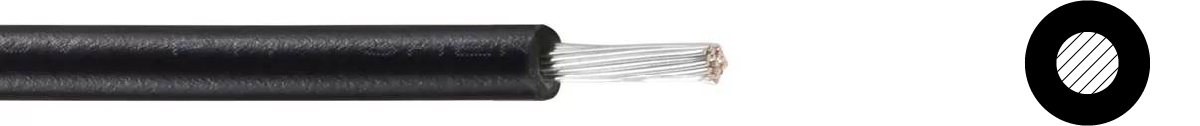

H30XXTS101







CONSTRUCTION

Conductors 16,18,20,22,24,26,28 AWG x 1C Tinned Stranded Copper or Nickel-plated Copper
Insulation FEP (Fluorinated Ethylene Propylene)
Color Code Black or other color
Separator N/A
Core Tape N/A
Drain wire N/A
Shield N/A
Jacket N/A
Color Code N/A

Marking: AWM 1332 XXAWG VW-1 200°C 300V E150612 THAI WONDERFUL (LF)

Remark: XX = SIZE OF CABLE

Packaging: 2001 FEET (610M): Reel

ELECTRICAL CHARACTERISTICS

IR Insulation Resistance (at 15°C) MΩ • KFT
16,18,20,22,24,26,28 AWG		 1000
DIELECTRIC WITHSTAND VOLTAGE (IN WATER)
KV/MINUTE (NO BROKEN)		 A.C. 2
SPARK TEST (KV)
16,18,20,22,24,26,28 AWG		 3



PHYSICAL CHARACTERISTICS

UNAGING INSULATION
TENSILE STRENGTH (MPa) (1.72 Kgf/mm²) (MINIMUM)
ELONGATION (MINIMUM)
17.2
200%
AGING INSULATION (232+1°C x 168 HRS)
TENSILE STRENGTH(MINIMUM)
ELONGATION (MINIMUM)
75%
75%
DEFORMATION TEST
(121+1°C x 1 HR) (MAXIMUM)		 50%
HEAT SHOCK TEST
1 HR (NO CRACK)		 232+1°C
COLD BEND TEST
4 HRS (NO CRACK)		 -10±2°C
FLAME TEST
(PASS)		 VW-1





PRODUCT CONSTRUCTION

Part Number Nominal Size Conductors Insulation Max. DC Resistance at 20°C / Ω /Km
No. /AWG Diameter(mm) Thickness(mm) Diameter(mm)
H3216TS101 16 AWG x 1C 55/33 1.54 0.32 2.26 14.6
H3218TS101 18 AWG x 1C 19/31 1.20 0.30 1.80 23.2
H3220TS101 20 AWG x 1C 19/32 0.98 0.30 1.58 36.7
H3222TS101 22 AWG x 1C 7/31 0.726 0.30 1.38 59.4
H3224TS101 24 AWG x 1C 7/33 0.588 0.30 1.24 94.2
H3226TS101 26 AWG x 1C 7/35 0.465 0.30 1.10 150
H3228TS101 28 AWG x 1C 7/37 0.372 0.30 1.00 239
H3216TS102 16 AWG x 1C 50/33 1.47 0.32 2.30 14.6
H3218TS102 18 AWG x 1C 19/30 1.27 0.32 2.15 23.2
H3220TS102 20 AWG x 1C 19/33 0.95 0.32 1.66 36.7
H3222TS102 22 AWG x 1C 19/34 0.80 0.32 1.51 36.7
H3224TS102 24 AWG x 1C 19/36 0.64 0.32 1.34 94.2
H3218TS103 18 AWG x 1C 19/30 1.27 0.32 1.98 23.5
H3220TS103 20 AWG x 1C 19/32 1.02 0.32 1.85 37.4





Update: 2024/10/30
