Home Product Power Cord PLUG

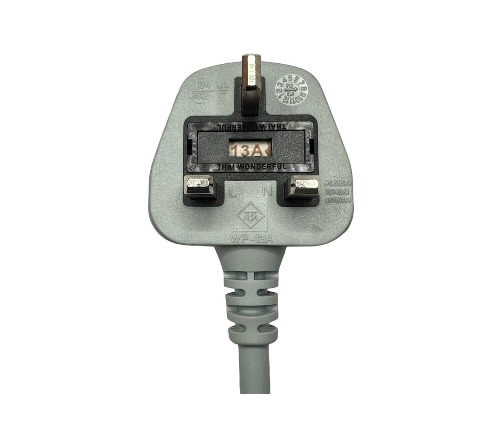

PLUG.TYPE H /ASTA ( BS1363 ),SS 149,MS 589

規格書下載Download

STANDARD

BS 1363-1 : 1995 with A1 , A2 And A3/SS 145 : Part 1 : 1997 / MS 589 : Part 1 : 1997 Intertek Type Certificate Number : CN-GSOG-2016956R2
BS 1363-1 : 2016+A1 : 2018 SASO 2203 : 2018
Safety Mark WP-13A SASO , ASTA , SAFETY
Logo of safety mark
Rate Current & Voltage Mark 13A 250V
Attached wire cord H03VVH2-F 2G 0.75SQMM
H05VV-F 3G 0.75SQMM , 1.00SQMM , 1.50SQMM
H05V2V2-F 3G 0.75SQMM , 1.00SQMM , 1.50SQMM





ELECTRICAL CHARACTERISTICS

Insulation Resistance
100 MEGA Ohm / 500V DC, 1 Min		 N/A
ACCELERATED AGING
NO CRACK 100°C , 96 RHS		 N/A
DIELECTRIC VOLTAGE TEST
No Broken AC 3.0 kV / 1 min
aC 3000V / 1.0 mA / 1 min		 N/A





PHYSICAL CHARACTERISTICS

Nominal Cable Diameter 4.38 mm
Cable Cold Bend -20±1℃ × 4 Hrs
Minimum Bend Radius 15 times O.D.
Temperature Rating (℃) 20℃ to 75℃
Temperature Voltage (V) 300 V





Packing : CARTON

STANDARD

BS 1363-1 : 1995 with A1 , A2 And A3/SS 145 : Part 1 : 1997 / MS 589 : Part 1 : 1997 Intertek Type Certificate Number : CN-GSOG-2016956R2
BS 1363-1 : 2016+A1 : 2018 SASO 2203 : 2018
Safety Mark WP-13A SASO , ASTA , SAFETY
Logo of safety mark
Rate Current & Voltage Mark 13A 250V
Attached wire cord H03VVH2-F 2G 0.75SQMM
H05VV-F 3G 0.75SQMM , 1.00SQMM , 1.50SQMM
H05V2V2-F 3G 0.75SQMM , 1.00SQMM , 1.50SQMM





ELECTRICAL CHARACTERISTICS

Insulation Resistance
100 MEGA Ohm / 500V DC, 1 Min		 N/A
ACCELERATED AGING
NO CRACK 100°C , 96 RHS		 N/A
DIELECTRIC VOLTAGE TEST
No Broken AC 3.0 Kv / 1 min
aC 3000V / 1.0 mA / 1 min		 N/A





PHYSICAL CHARACTERISTICS

Nominal Cable Diameter 4.38 mm
Cable Cold Bend -20±1℃ × 4 Hrs
Minimum Bend Radius 15 times O.D.
Temperature Rating (℃) 20℃ to 75℃
Temperature Voltage 300 V





Packing : CARTON

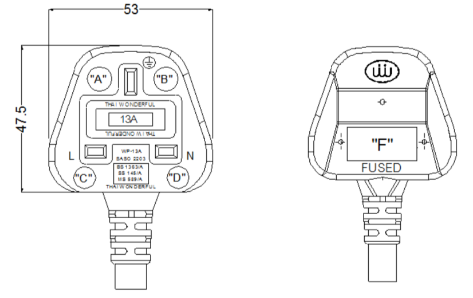

產品構造Cable Structure

WP-13A
