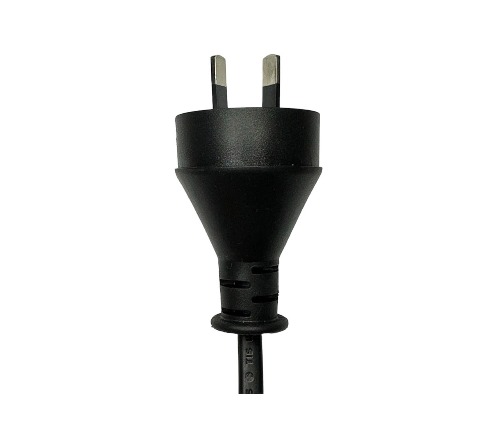

PLUG.TYPE I/SAA / AS/NZS 3112

規格書下載Download

STANDARD

AS/NZS 3112:2011+A1+A2+A3, AS/NZS 3100:2009+A1+A2+A3+A4
Safety Mark	WP-302 TUV021149EA
Logo of safety mark	AS/NZS 3112 KIC. NO. TUV021039EA
Rate Current & Voltage Mark	7.5A 250V , 10A 250V
Attached wire cord	H03VV-F 2G 0.75SQMM H05VV-F 2G 0.75SQMM, 1.00SQMM, 1.50SQMM H05V2V2-F 2G 0.75SQMM, 1.00SQMM, 1.50SQMM

ELECTRICAL CHARACTERISTICS

Resistance to Heat 90±2°C, 6 HR	N/A
TEMPERATURE RISING TEST 45K(Max) (APPLIED 8.3A for 7.5A) (APPLIED 11A for 10A)	N/A
Insulation Resistance 100 MEFA Ohm / 500V DC, 1 Min	N/A
WATER ABSORPTION TEST NO SWELL, CHANGE (20°C, 48 HRS IN WATER)	N/A

PHYSICAL CHARACTERISTICS

Nominal Cable Diameter	4.38 mm
Cable Cold Bend	-20±1°C × 4 Hrs
Minimum Bend Radius	15 times O.D.
Temperature Rating (°C)	20°C to 75°C
Temperature Voltage	300 V

Packing : CARTON

STANDARD

AS/NZS 3112:2011+A1+A2+A3, AS/NZS 3100:2009+A1+A2+A3+A4
Safety Mark	WP-302 TUV021149EA
Logo of safety mark	AS/NZS 3112 KIC. NO. TUV021039EA
Rate Current & Voltage Mark	7.5A 250V , 10A 250V
Attached wire cord	H03VV-F 2G 0.75SQMM H05VV-F 2G 0.75SQMM, 1.00SQMM, 1.50SQMM H05V2V2-F 2G 0.75SQMM, 1.00SQMM, 1.50SQMM

ELECTRICAL CHARACTERISTICS

Resistance to Heat 90±2°C, 6 HR	N/A
TEMPERATURE RISING TEST 45K(Max) (APPLIED 8.3A for 7.5A) (APPLIED 11A for 10A)	N/A
Insulation Resistance 100 MEFA Ohm / 500V DC, 1 Min	N/A
WATER ABSORPTION TEST NO SWELL, CHANGE (20°C, 48 HRS IN WATER)	N/A

PHYSICAL CHARACTERISTICS

Nominal Cable Diameter	4.38 mm
Cable Cold Bend	-20±1°C × 4 Hrs
Minimum Bend Radius	15 times O.D.
Temperature Rating (°C)	20°C to 75°C
Temperature Voltage	300 V

Packing : CARTON

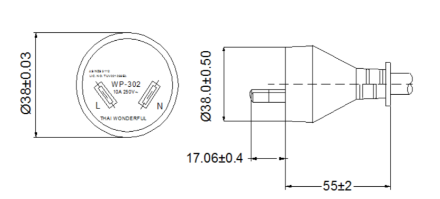

產品構造Cable Structure

WP-302
