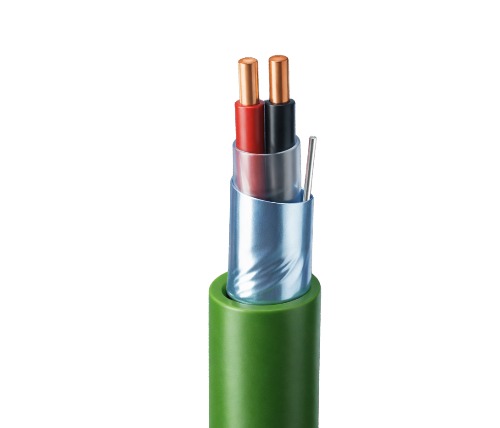

KNX TP1 Cable 2x0.8mm

Specifically designed for the KNX ecosystem, the KNX TP1 2x0.8mm cable serves as the backbone for building automation. The single-pair configuration delivers stable control signals for lighting, climate, and security management. Its LSZH jacket meets the highest fire safety standards for modern infrastructure.
規格書下載Download

Feature

  • Global Certification: Fully compliant with international KNX TP1 standards.
  • Signal Integrity: Precise 0.8mm conductors for long-distance signal reliability.
  • Safe Installation: LSZH jacket ensures building code compliance.
  • User Friendly: Clearly marked for rapid identification and installation.



Technical Specifications

  • Specification: 2x0.8mm (1-Pair)
  • Jacket Material: LSZH
  • Applications: Automated Lighting, Energy Efficiency Management, Smart Building Controls

Material and Construction

Conductor Material Solid bare copper
Diameter 0.81 ± 0.01 mm
Insulation Material Polyethylene (PE)
Color code & diameter Red    1.60 ± 0.03 mm
Black    1.60 ± 0.03 mm
Assembly Description Left hand direction
Shield Material Mylar tape
Drain wire Material 26AWG solid tinned copper
Shield Material Al Mylar tape
Description 100 % coverage and mylar side facing out
Jacket Material LSZH
Diameter 4.70 ± 0.20 mm
Thickness 0.55 ± 0.05 mm
Color Green RAL 6018
Marking WONDERFUL KNX TPI CABLE 1X2X0.8MM SHIELD LSZH CPR Eca MMYY XXXX



Usage & Environmental Condition

Temperature range Storage & shipping -20°C to 60°C
Installation 0°C to 60°C
Operation -20°C to 60°C
Minimum bending radius ≥ 8 times of overall diameter
Maximum pulling tension ≤ 110 N



Physical & Electrical Characteristics (at 20°C)

Temperature rating 60°C
Spark test 2.5 KV DC
AC leakage current through overall jacket ≤ 10mA (1.5KV AC)
Cable cold bend -20°C for 4 hr
Conductor DC resistance ≤ 33.9 Ω/km

Feature

  • Global Certification: Fully compliant with international KNX TP1 standards.
  • Signal Integrity: Precise 0.8mm conductors for long-distance signal reliability.
  • Safe Installation: LSZH jacket ensures building code compliance.
  • User Friendly: Clearly marked for rapid identification and installation.



Technical Specifications

  • Specification: 2x0.8mm (1-Pair)
  • Jacket Material: LSZH
  • Applications: Automated Lighting, Energy Efficiency Management, Smart Building Controls

Material and Construction

Conductor Material Solid bare copper
Diameter 0.81 ± 0.01 mm
Insulation Material Polyethylene (PE)
Color code & diameter Red    1.60 ± 0.03 mm
Black    1.60 ± 0.03 mm
Assembly Description Left hand direction
Shield Material Mylar tape
Drain wire Material 26AWG solid tinned copper
Shield Material Al Mylar tape
Description 100 % coverage and mylar side facing out
Jacket Material LSZH
Diameter 4.70 ± 0.20 mm
Thickness 0.55 ± 0.05 mm
Color Green RAL 6018
Marking WONDERFUL KNX TPI CABLE 1X2X0.8MM SHIELD LSZH CPR Eca MMYY XXXX





Usage & Environmental Condition

Temperature range Storage & shipping -20°C to 60°C
Installation 0°C to 60°C
Operation -20°C to 60°C
Minimum bending radius ≥ 8 times of overall diameter
Maximum pulling tension ≤ 110 N





Physical & Electrical Characteristics (at 20°C)

Temperature rating 60°C
Spark test 2.5 KV DC
AC leakage current through overall jacket ≤ 10mA (1.5KV AC)
Cable cold bend -20°C for 4 hr
Conductor DC resistance ≤ 33.9 Ω/km

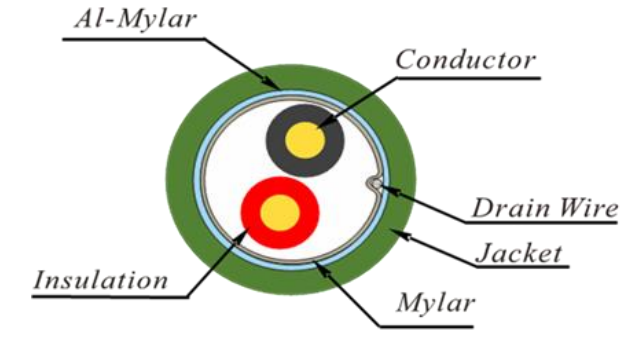

產品構造Cable Structure
